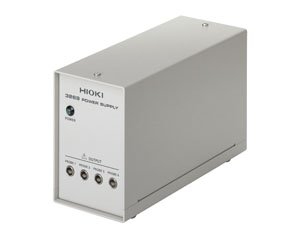

Hioki Power Supply 3269, 3272

Power Supply Unit for Outputting Current Probe Signals to Memory HiCorders and Oscilloscopes

Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The 3272 is a single channel and the 3269 is a 4 channel power supply for outputting signals measured by the 327X Series AC/DC Clamp On Probe to the data acquisition equipment.

Models 3269 and 3272 cannot be used alone. For current testing, must be paired with compatible current probe.

Dedicated power supply and output for the 3273-50, 3274, 3275 and 3276 AC/DC Clamp On Probe when used with recorders and other types of data acquisition equipment
• Model 3269 supports up to 4 current probes
• Model 3272 supports one current probe
• AC powered

Basic specifications (Accuracy guaranteed for 1 year)

  3269 3272
Compatible models Model 3273-50, 3274, 3275 or 3276 ×4 units
Note: Also up to 4 units for the discontinued Model 3273
Model 3273-50, 3274, 3275 or 3276 ×1 unit. (One sensor only)
Note: May be used with up to 2 units of Model 3273 (not -50 type), and up to 2 units of Models 3273-50, 3274, 3275 or 3276 on condition that the measurement current is sufficiently low. Please check with your HIOKI distributor.
Power supply 100 V to 240 V AC (free), 50/60 Hz 170 VA max. 100 V or 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz 20 VA max.
Dimensions and mass 80 mm (3.15 in) W × 119 mm (4.69 in) H × 200 mm (7.87 in) D, 1.1 kg (38.8 oz) 73 mm (2.87 in) W × 110 mm (4.33 in) H × 186 mm (7.32 in) D, 1.1 kg (38.8 oz)
Accessories Instruction manual x1, Power cord x1 Power cord x1, Instruction manual x1, Spare fuse x1
