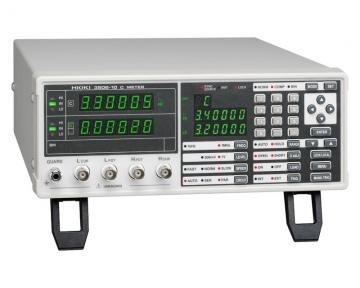

Dual-band 1kHz/1MHz Capacitance Tester for High Speed Testing of Ceramic Capacitors on Production Lines
Hioki LCR and Impedance Analyzers range from 4Hz to 120MHz devices to suit a wide range of applications in the testing of electronic components. The 3506-10 is a dual-band capacitance tester designed to be integrated with automatic taping machines and sorters for production of MLCC (multi-layer ceramic capacitors).
This product is not supplied with measurement probes or test fixtures. Please select and purchase the measurement probe or test fixture options appropriate for your application separately.
For an RS-232C connection: A crossover cable for interconnection can be used. You can use the RS-232C cable 9637 without hardware flow control.
High-speed analog test time of 0.6 ms (at 1 MHz)
• Improved noise resistance and enhanced repeatability in measurement precision even for production lines
• 1 kHz and 1 MHz measurement frequency supports stable low capacitance testing with taping machines
• BIN function, for easy component screening
Basic specifications (Accuracy guaranteed for 1 year)
Measurement parameters | C (Capacitance), D (loss coefficient, tan δ), Q (1/tan δ) |
---|---|
Measurement range | C: 0.001 fF to 15.0000 μF, D: 0.00001 to 1.99999, Q: 0.0 to 19999.9 |
Basic accuracy | (Typ.) C: ±0.14 % rdg., D: ±0.0013 |
Measurement frequency | 1 kHz, 1 MHz |
Measurement signal level | 500 mV, 1 V rms |
Output impedance | 1 Ω (at 1 kHz in 2.2 μF and higher ranges), 20 Ω (in ranges other than the above) |
Display | LED (six digits, full scale count depends on measurement range) |
Measurement time | 1.5 ms: 1 MHz, 2.0 ms: 1 kHz |
Functions | BIN (measurement values can be classified by rank), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, Current detection circuit monitoring, Applied voltage value monitoring, EXT. I/O, RS-232C, GP-IB |
Power supply | Selectable 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz 40 VA max. |
Dimensions and mass | 260 mm (10.24 in) W × 100 mm (3.94 in) H × 298 mm (11.73 in) D, 4.8 kg (169.3 oz) |
Accessories | Power cord × 1, Instruction manual × 1, Spare fuse × 1 |
