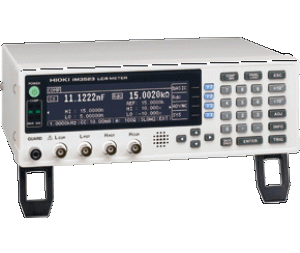

Wide band 40Hz to 200kHz LCR Tester for High Speed Automated Testing on Production Lines
Hioki LCR and Impedance Analyzers range from 4Hz to 120MHz devices to suit a wide range of applications in the testing of electronic components. The IM3523is designed for basic measurement on production lines so that it can be offered at a low price point, and delivers improved measurement reliability thanks to its contact check function.
This product is not supplied with measurement probes or test fixtures. Please select and purchase the measurement probe or test fixture options appropriate for your application separately. All probes are constructed with a 1.5D-2V coaxial cable.
For an RS-232C connection: A crossover cable for interconnection can be used. You can use the RS-232C CABLE 9637 without hardware flow control.
±0.05% accuracy with wide measurement range
(DC, 40Hz to 200kHz, 5mV to 5V, 10uA to 50mA)
• Non-stop testing over mixed measurement conditions such as C-D and ESR at 10 times the speed of previous models (compare with the model 3532-50)
• Built-in comparator and BIN functions
• Rapid 2msec test time
Basic specifications (Accuracy guaranteed for 1 year)
| Measurement modes | LCR, Continuous testing |
|---|---|
| Measurement parameters | Z, Y, θ, Rs (ESR), Rp, DCR (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q |
| Measurement range | 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.) |
| Displayable range | Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only θ: ± (0.000° to 999.999°), D: ± (0.00000 to 9.99999) Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%) |
| Basic accuracy | Z : ±0.05% rdg. θ: ±0.03° |
| Measurement frequency | 40 Hz to 200 kHz (1 mHz to 10 Hz steps) |
| Measurement signal level | [Normal mode] V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps CC mode: 10 μA to 50 mArms, 10 μArms steps |
| Output impedance | Normal mode: 100 Ω, |
| Display | Monochrome LCD |
| Measurement time | 2 ms (1 kHz, FAST, representative value) |
| Functions | Comparator, BIN measurement (classify function), Panel loading/saving, Memory function |
| Interfaces | EXT I/O (handler), USB communication (high-speed) Optional: Choose 1 from RS-232C, GP-IB, or LAN |
| Power supply | 100 to 240 V AC, 50/60 Hz, 50 VA max |
| Dimensions and mass | 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.4 kg (84.7 oz) |
| Accessories | Power cord × 1 , Instruction manual × 1, CD-R (Includes PC commands and sample software) × 1 |
