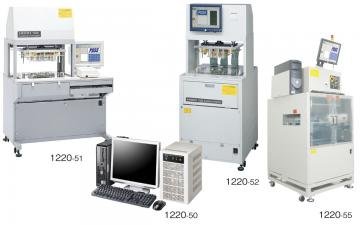

High Performance Populated Board Testing with Expansion Capabilities
In populated board production settings where improving productivity is key, even small time losses are unacceptable. The 1220 series provide a single solution for jobs that previously required multiple measuring instruments, featuring a compact PCI bus that delivers a dramatic speed boost of 150%.
• Extensive test functionality in a single tabletop box (1220-50)
• Detection of electrolytic capacitor and IC reverse insertion (optional feature)
• Macro testing for increasing test efficiency
• Extensive range of system configurations
■ 1220-50, 1220-51, and 1220-52 shared specifications
Number of test steps | Component data: Max. 10,000 Macro data: Max. 2,176 |
||
---|---|---|---|
Test parameters and ranges | Round robin short/open: 4 Ω to 400 kΩ Macro test: 1 Ω to 10 MΩ (impedance) Component tests Resistance: 400 mΩ to 40 MΩ Low-resistance (optional feature): 400 μΩ to 400 mΩ Capacitance: 10 pF to 400 mF Coils: 1 μH to 100 H Diodes, transistors: 0 V to 25 V High-current application diode (option feature): 0 V to 9 V Zener diode: 0 V to 25 V High-voltage Zener diode (optional feature): 1 V to 100 V Digital transistors: 0 V to 25 V Photo coupler test function: 0 V to 25 V DC voltage measurement: 0 V to 25 V Open: 4 Ω to 4 MΩ Short: 400 mΩ to 400 kΩ Discharge Capacitor reverse insertion detection (optional feature) IC reverse insertion detection (optional feature) |
||
Measurement time | Round robin short/open: From approx. 0.8 msec./pin Component: From approx. 0.9 msec./pin |
■ Specifications overview
1220-50 | 1220-51 | 1220-52 | |
Number of test points | Standard: 128 pins (Can be expanded in blocks of 64.) Max.: 320 pins (HiTESTER only) Max. 2,176 (with up to three 640-pin expansion boxes) |
Standard: 320 pins (Can be expanded in blocks of 64.) Max. 2,176 pins (3 expansion racks) |
Standard: 320 pins (Can be expanded in blocks of 64.) Max. 1,536 (2 expansion racks) |
Power supply | 100 to 240 V AC (±10%) Single-phase, 50/60 Hz |
100 to 120 V, 200 to 240 V AC (±10%) Single-phase, 50/60 Hz (Specify at time of order) |
100 to 120 V, 200 to 240 V AC (±10%) Single-phase, 50/60 Hz (Specify at time of order) |
Accessories | Set of test leads (red, black) | ||
