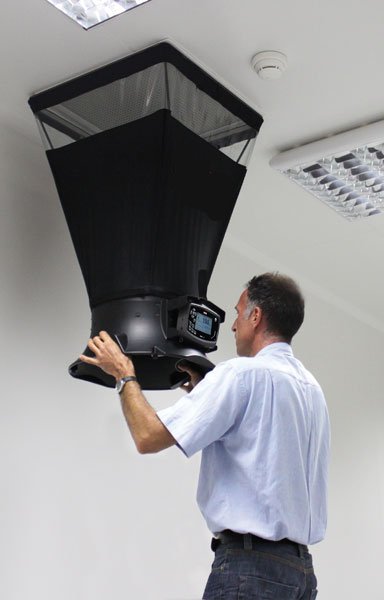

The Airflow Hood is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings at diffusers and grilles. It features a detachable micromanometer for increased flexibility in multiple measurement applications. Offering durable operation, this lightweight, ergonomically designed Airflow capture hood kit saves time and money by combining multiple measurement tools into one package. A professional tool for airflow commissioning and balancing with quick and simple hood changes. Measuring range from 50 to 3500 m3/h / -2500 Pa to 2500 Pa, handles integrated on the measuring unit. Calculation of average airflow with easy-access button, display of datasets, recording and downloading of datasets on PC, via LPCF / DATALOGGER software (Optional extra).
Airflow Capture Cone features:
- Simultaneous display of airflow and temperature
- Automatic detection of airflow direction (supply and exhaust)

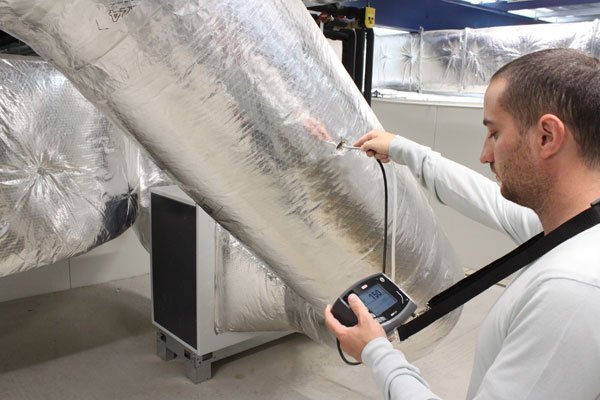

- Autonomous micro-manometer for air velocity measurement
- Differential probe (Pitot tube, Debimo blade)
- Measurement compensation according to thermocouple temperature

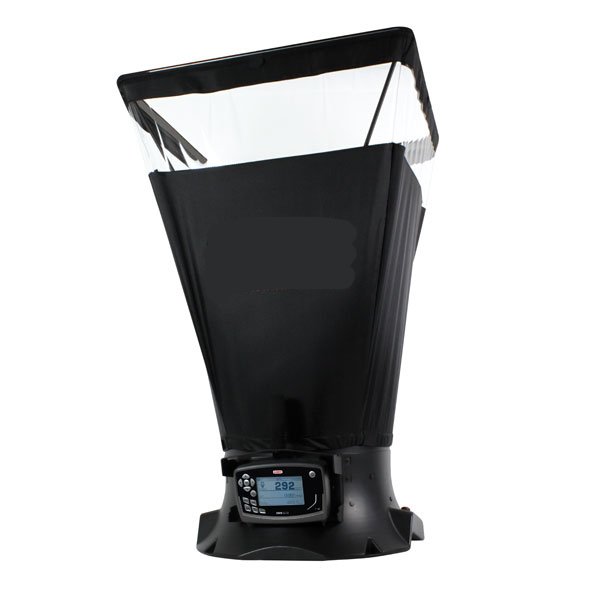

- Includes Airflow hood (610mm x 610mm)
Airflow Capture Cone features:
· Simultaneous display of airflow and temperature
· Automatic detection of airflow direction (supply and exhaust)
· Autonomous micro-manometer for air velocity measurement
· Differential probe (Pitot tube, Debimo blade)
· Measurement compensation according to thermocouple temperature
· Includes Airflow hood (610mm x 610mm)
Features:
· Transparent window on each side for ease of placement / positioning
· Measurement of 48 points, all over the surface area
· Simultaneous display of airflow and temperature
· Automatic airflow direction (extraction or air blast)
· Shock proof ABS & IP54 housing
· Large graphic back lit, 3 line, LCD screen (86 × 51cm)
· Data processing on computer with USB port

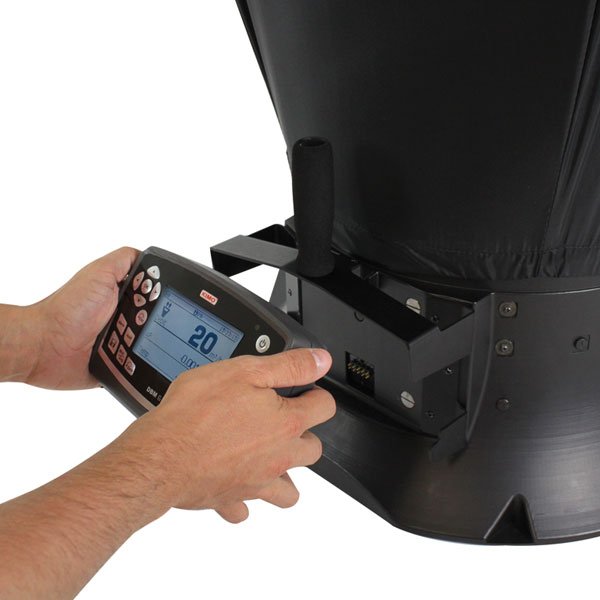

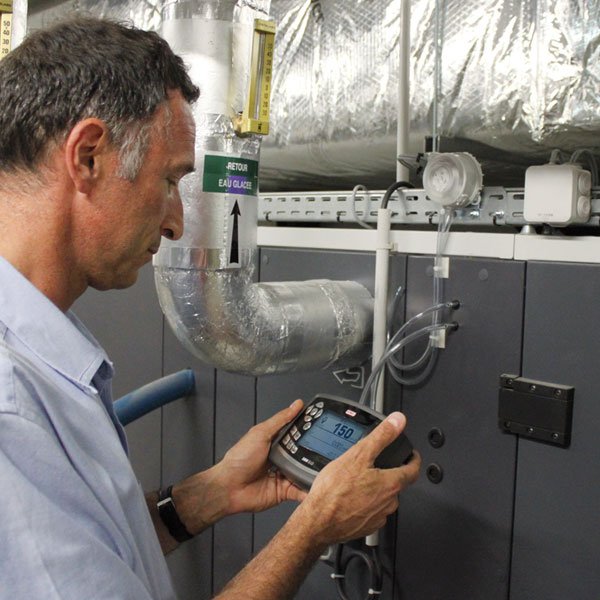

Removable measuring unit; great for small companies who can
utilise it as a portable micro-manometer (with any pitot tube)
Specifications:
Measuring Range:
· Air Flow: 40 to 3500 m3/h
· Temp: 0 to +50°C
Accuracy:
· 3% / ±10m3/h
· 2% / ±0.1°C
Resolution:
· 1m3/h
· 0.1°C
