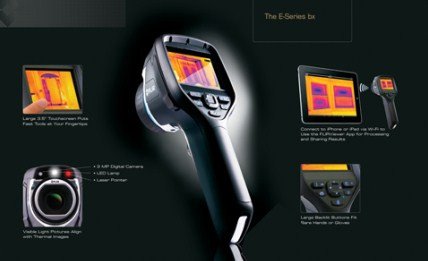

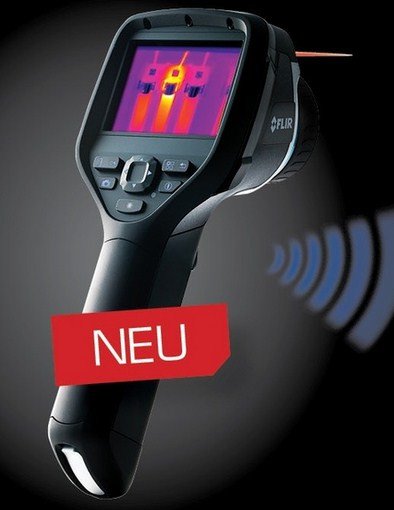

FLIR E40 E50 E60 Thermal imager with Wifi,Camera (Made in Sweden)
https://www.youtube.com/watch?v=U8_Bu4cPNXw
https://www.youtube.com/watch?v=x1kCa20lfos
- Manual focus, 4x continuous zoom
- Built-in laser pointer, 3.5" Touch-Screen LCD display
- Built-in 3.1 Megapixel visible light digital camera with bright LED lamp for poorly lit environments
- Functions include Scalable Picture-In-Picture, Thermal Fusion, Voice/Text Annotation, Laser Pointer Marker, IR Window Correction, Instant Report
- Measurement modes: up to 3 movable Spots, up to 3 Areas (Min/Max/Average), Auto Hot/Cold spot marker, Isotherm (Above/Below), Delta T
- METERLiNK Bluetooth Wireless communication
-
With an image quality of up to 320 x 240 pixels, the FLIR E-Series is ideal for predictive maintenance and planned inspection of electrical and mechanical systems to ensure they operate at maximum efficiency and safety with minimal energy consumption.
Superior Thermal Imaging – Up to 76,800 pixels (320 × 240) IR resolution coupled with 2% accuracy, <0.05˚C thermal sensitivity, 4x digital zoom, and 60Hz refresh rate for unbeatable detail and the highest level of point-and-shoot image quality available.
3MP Digital Camera – Use the built-in LED lamp and visual camera with 3 megapixel resolution to capture crisply detailed visible light images even in poorly-lit sites.
Wide 3.5” Full-View Touchscreen – Brighter than other brands, the E-Series’ wide touchscreen displays images using the entire screen, with no cropping, while offering the industry’s most intuitive and easy-to-use control interface.
{youtube}nWFtMELAGYE{/youtube}
With an image quality of up to 320 x 240 pixels, the FLIR E-Series is ideal for predictive maintenance and planned inspection of electrical and mechanical systems to ensure they operate at maximum efficiency and safety with minimal energy consumption.
Large and bright LCD |
|
Laserpointer and LED light |
|
|
Wifi |
Thermal Fusion |
|
Picture-in-Picture (PiP) |
|
MeterLink™ |
|
|
Instant reports |
|
Text and voice annotations |
|
Visual camera |
FLIR E-Series camera model comparison
FLIR E30 |
FLIR E40 |
FLIR E50 |
FLIR E60 |
Thermal image quality: 160x120 pixels |
Thermal image quality: 160x120 pixels |
Thermal image quality: 240x180 pixels |
Thermal image quality: 320x240 pixels |
Thermal sensitivity: <0.1°C |
Thermal sensitivity: <0.07°C |
Thermal sensitivity: <0.05°C |
Thermal sensitivity: <0.05°C |
Temperature range: 0°C to +350°C |
Temperature range: -20°C to +650°C |
Temperature range: -20°C to +650°C |
Temperature range: -20°C to +650°C |
Spotmeter: 1 |
Spotmeter: 3 |
Spotmeter: 3 |
Spotmeter: 3 |
1 box with min./max./average |
3 boxes with min./max./average |
3 boxes with min./max./average |
3 boxes with min./max./average |
Delta temperature measurement |
Delta temperature measurement |
Delta temperature measurement |
|
Built-in 2 Mpixels digital camera |
Built-in 3.1 Mpixels digital camera |
Built-in 3.1 Mpixels digital camera |
Built-in 3.1 Mpixels digital camera |
Voice / text annotations |
Voice / text annotations |
Voice / text annotations |
|
MeterLink™ |
MeterLink™ |
MeterLink™ |
|
Bluetooth® / WiFi |
Bluetooth® / WiFi |
Bluetooth® / WiFi |
|
1-2x continuous digital zoom |
1-4x continuous digital zoom |
1-4x continuous digital zoom |
|
IR area on visual image |
Scalable IR area on visual image |
Scalable IR area on visual image |
|
Thermal Fusion |
Thermal Fusion |
||
Non-radiometric video streaming |
Non-radiometric video streaming |
||
Instant report |
