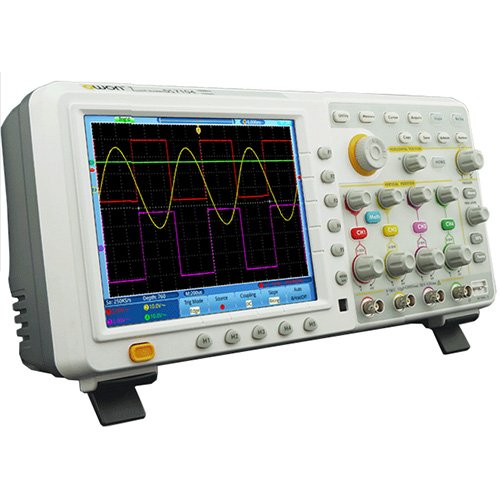

OWO2102-TDS8104V2 100MHZ 2G/S 8" LCD 4 CHANNEL LAN VGA OSCILLOSCOPE 3 YEARS WARRANTY

  • 100MHz bandwidth, up to 2GS/s realtime sample rate
  • 7.6M record length
  • 50,000 wfms/s waveform capture rate - waveform zooming (horizontal / vertical), and saving
  • FFT points (length, and resolution variable)
  • Multi-window extension
  • User-friendly voice warning
  • 8 inch 800 x 600 pixels high def LCD
  • Multi-communication interface : USB, VGA, LAN
  • Applications:
    • Electronic circuit debugging
    • Circuit testing
    • Design and manufacture
    • Education and training
    • Automobile maintenance and testing
Specifications
Bandwidth 100MHz
Channel 4
Sample Rate 2GS/s
Waveform Capture Rate 50,000 wfms/s
Display 8" touch screen color LCD
Input Coupling DC, AC, and GND
Input Impedance 1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1%
Probe Attenuation Factor 1X, 10X, 100X, 1000X
Max Input Voltage 1MΩ input impedance : 400V (PK - PK) (DC + AC, PK - PK)
50Ω input impedance : 5V (PK - PK) (DC + AC, PK - PK)
Channel Isolation 50Hz:100:1
10MHz:40:1
Interpolation sin(x)/x
Record Length 7.6M
Horizontal Scale (s/div) 1ns/div - 100s/div, step by 1 - 2 - 5
Interval (ΔT) Accuracy (full bandwidth) Single : ±(1 interval time + 100ppm x reading + 0.6ns)
Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns)
Vertical Resolution (A/D) 8 bits resolution (4 channels simultaneously)
Vertical Sensitivity 2mV/div - 10V/div (at input)
Analog Bandwidth 100 MHz
LF Respond (AC, -3dB) ≥5Hz (at input, AC coupling, -3dB)
Rise Time ≤3.5ns
DC Accuracy ±3%
Trigger Type Edge, Pulse, Video, Slope
Trigger Mode Auto, Normal, Single
Trigger Level Range ±6 div from the screen center
Trigger level Accuracy (typical) ±0.3 div
Line / Field Frequency (video) NTSC, PAL, and SECAM standard
Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty
Waveform Math +, -, ×, ÷, invert, FFT
Waveform Storage 4 reference waveforms
Lissajous Figure Bandwidth full Bandwidth
Phase Difference ±3 degrees
Cursor Measurement ΔV, and Δ T between cursors
Communication Port USB host, USB device, VGA, LAN
Power Supply 100 - 240 V AC, 50/60Hz, CAT II
Dimension (WxHxD) 14.9 x 7.08 x 4.5 Inches (380 x 180 x 115 mm)
Weight 3.3 lbs (1.5 kg)

Ordering Information
Model Description
TDS8104 Owon TDS8104 100MHz, 2GS/s, 7.6Mpts, 4 Channel Touch Screen Digital Serial Oscilloscope
Included Accessories

  • 1 - USB Cable
  • 4 - Passive Probes: 1.2m, 1:1 (10.1)
  • 1 - Power Cord
  • 1 - CD Rom
  • 1 - Manual
