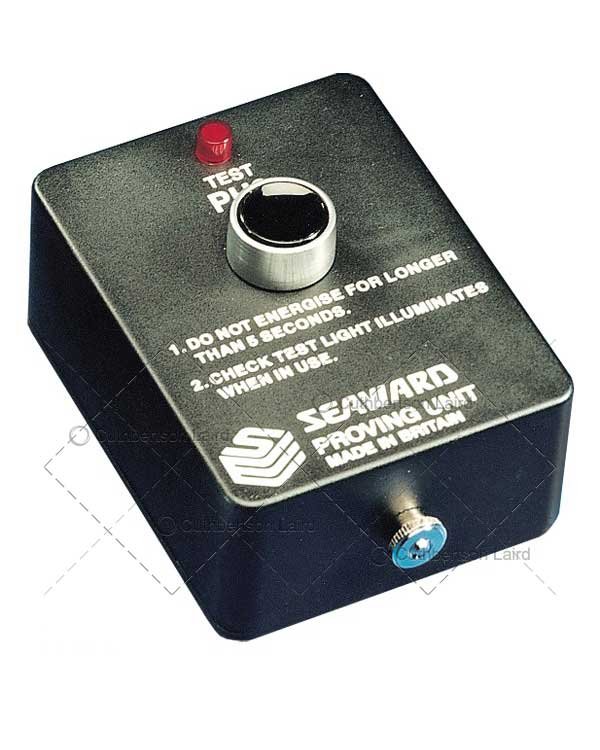

Seaward PH3 Proving Unit

Domed Head Proving Unit
THE SEAWARD PH3 HAS BEEN DESIGNED FOR USE WITH POTENTIAL INDICATORS AND PHASING RODS WITH A DOMED CONTACT ELECTRODE

Seaward HV products on this site are advertised at the list price. Please use the 'Best Quote' link on the right for our discounted price.

Seaward Part No: 112A913



A highly portable, battery powered proving unit for proving high voltage indicators, live line testers and digital potential indicators. This proving unit produces a DC output voltage for confirming the operation of voltage indicators before and after use.

Seaward PH3 Proving Unit Features

  • High voltage output approx 1200 - 1500V DC nominal across 10MΩ.
  • Output current: 0.45mA DC into 2kΩ.
  • Test terminals: Contact electrode and test post.
  • Neon indicator to show output is active.
  • Very portable.
  • Flatnose version also available.
  • Dimensions: 110 x 85 x 60mm.
  • Compliance IEC61010-1:2001.

Included Accessories:

Case.
