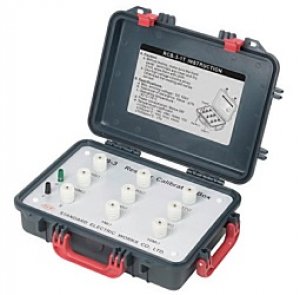

SEW0011 -RCB-3-1T HV Resistor Calibration Boxes

● The RCB-3-1T is used to verify and proof any High Voltage
    Insulation Testers. It can be utilized to calibrate all High Voltage
    Insulation Testers very accurately Analogs or Digitals.
● Some institutions and large industries requested their own calibrator
    too, therefore, SEW started manufacturing the RCB for special


Resistance ranges (Ω) : 1M. 10M. 100M. 1G.
    5G. 10G. 100G. 1T
Resistance tolerances : ±1%(F)
Temperature coefficient : ± 25ppm/°C : 1MΩ. 10MΩ. 100MΩ.
    ± 100ppm/°C : 1GΩ. 5GΩ
    ± 200ppm/°C : 10GΩ.100GΩ
    ± 1000ppm/°C : 1TΩ
Max. working voltage : DC 10kV
Operating temperature : -30°C~75°C
Power coefficient : Below 3W
Connecting erminals : Binding Post : Resistance circuit
    and guard
Dimensions : 430(L) × 324(W) × 127(D)mm
Weight (battery included) : Approx. 4140g
