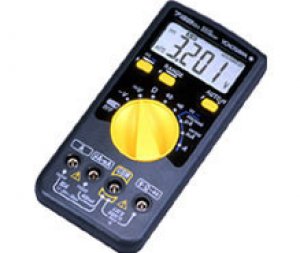

YOKOGAWA DIGITAL MULTIMETERS 732 SERIES

3.5 digits (4,300-count), Mean value type
Measurement Functions: Voltage, Current, Resistance, Continuity Check, Diode Test, Capacitance
Features: Auto hold, Auto power-off

Specifications - Model 73201/R

Display 4300-count digital reading
DC Voltage Accuracy1 0.75% + 1
AC Voltage Accuracy2 1% + 5
Additional Functions Auto hold, overvoltage and current warning
Features
  • Accuracy 0.5% at DC voltage and 4300 count digital Display
  • Compact size & ideal for carrying
  • Large display for easy viewing
  • Safe design allows measurement in excess of 20A
  • Auto hold function
  • 3 year warranty
Operating Temp and Humidity 0 to 50°C; 80% RH or less at 0°C to 40°C, or 70% RH or less at 40°C to 50°C (no condensation)
Power Supply Two AAA (LR03 or R03) dry cells
Battery Life Approx. 600 hours (for continuous DC voltage measurement with alkaline cells)
Dimensions 74 (W) x 155 (H) x 31 (D) mm
Weight Approx. 240 g (including batteries)
Compliance with Standards Safety EN61010-1 (1995) + Amend;
EN61010-2-031 (1995) (600 V, CAT II; 300 V, CAT III;
contamination level 2, indoor use: 73201,73202, 73203)
EMC EMI: EN55011 (1991) (Class B, Group 1) EMS: EN50082-1 (1997)
Standard Accessories AAA (LR03/R03) dry cells (built in): 2
Instruction manual: 1
Spare fuse F02 (15 A/250 V): 1
Spare fuse F05 (500 mA/250 V): 1
Test lead set (RD031) :1
Optional Accessories Carrying Case (hard) Hoses the DMM and test leads (B9648GB)
Rubber Case for DMM (93007)

1 40V - 600V Range
2 4V - 600V Range

Specifications - Model 73202/R

Display 4300-count digital reading
DC Voltage Accuracy1 0.5% + 1
AC Voltage Accuracy2 1% + 5
Additional Functions Auto hold, overvoltage and current warning
Features
  • Accuracy 0.5% at DC voltage and 4300 count digital Display
  • Compact size & ideal for carrying
  • Large display for easy viewing
  • Safe design allows measurement in excess of 20A
  • Auto hold function
  • 3 year warranty
Operating Temp and Humidity 0 to 50°C; 80% RH or less at 0°C to 40°C, or 70% RH or less at 40°C to 50°C (no condensation)
Power Supply Two AAA (LR03 or R03) dry cells
Battery Life Approx. 600 hours (for continuous DC voltage measurement with alkaline cells)
Dimensions 74 (W) x 155 (H) x 31 (D) mm
Weight Approx. 240 g (including batteries)
Compliance with Standards Safety EN61010-1 (1995) + Amend;
EN61010-2-031 (1995) (600 V, CAT II; 300 V, CAT III;
contamination level 2, indoor use: 73201,73202, 73203)
EMC EMI: EN55011 (1991) (Class B, Group 1) EMS: EN50082-1 (1997)
Standard Accessories AAA (LR03/R03) dry cells (built in): 2
Instruction manual: 1
Spare fuse F02 (15 A/250 V): 1
Spare fuse F05 (500 mA/250 V): 1
Test lead set (RD031) :1
Optional Accessories Carrying Case (hard) Hoses the DMM and test leads (B9648GB)
Rubber Case for DMM (93007)

1 40V - 600V Range
2 4V - 600V Range

Specifications - Model 73203/R

Display 4300-count digital reading
DC Voltage Accuracy1 0.5% + 1
AC Voltage Accuracy2 0.75% + 1
Additional Functions Auto hold, overvoltage and current warning
Features
  • Accuracy 0.5% at DC voltage and 4300 count digital Display
  • Compact size & ideal for carrying
  • Large display for easy viewing
  • Safe design allows measurement in excess of 20A
  • Auto hold function
  • 3 year warranty
Operating Temp and Humidity 0 to 50°C; 80% RH or less at 0°C to 40°C, or 70% RH or less at 40°C to 50°C (no condensation)
Power Supply Two AAA (LR03 or R03) dry cells
Battery Life Approx. 600 hours (for continuous DC voltage measurement with alkaline cells)
Dimensions 74 (W) x 155 (H) x 31 (D) mm
Weight Approx. 240 g (including batteries)
Compliance with Standards Safety EN61010-1 (1995) + Amend;
EN61010-2-031 (1995) (600 V, CAT II; 300 V, CAT III;
contamination level 2, indoor use: 73201,73202, 73203)
EMC EMI: EN55011 (1991) (Class B, Group 1) EMS: EN50082-1 (1997)
Standard Accessories AAA (LR03/R03) dry cells (built in): 2
Instruction manual: 1
Spare fuse F02 (15 A/250 V): 1
Spare fuse F05 (500 mA/250 V): 1
Test lead set (RD031) :1
Optional Accessories Carrying Case (hard) Hoses the DMM and test leads (B9648GB)
Rubber Case for DMM (93007)

1 40V - 600V Range
2 4V - 600V Range

Specifications - Model 73204/R

Display 4300-count digital reading
DC Voltage Accuracy1 0.3% + 1
AC Voltage Accuracy2 0.75% + 1
Additional Functions Auto hold, overvoltage and current warning
Features
  • Accuracy 0.5% at DC voltage and 4300 count digital Display
  • Compact size & ideal for carrying
  • Large display for easy viewing
  • Safe design allows measurement in excess of 20A
  • Auto hold function
  • 3 year warranty
Operating Temp and Humidity 0 to 50°C; 80% RH or less at 0°C to 40°C, or 70% RH or less at 40°C to 50°C (no condensation)
Power Supply Two AAA (LR03 or R03) dry cells
Battery Life Approx. 600 hours (for continuous DC voltage measurement with alkaline cells)
Dimensions 74 (W) x 155 (H) x 31 (D) mm
Weight Approx. 240 g (including batteries)
Compliance with Standards Safety EN61010-1 (1995) + Amend;
EN61010-2-031 (1995) (600 V, CAT II;
300 V, CAT III; contamination level 2, indoor use: 73201,73202, 73203)
EMC EMI: EN55011 (1991) (Class B, Group 1) EMS: EN50082-1 (1997)
Standard Accessories AAA (LR03/R03) dry cells (built in): 2
Instruction manual: 1
Spare fuse F02 (15 A/250 V): 1
Spare fuse F05 (500 mA/250 V): 1
Test lead set (RD031) :1
Optional Accessories Carrying Case (hard) Hoses the DMM and test leads (B9648GB)
Rubber Case for DMM (93007)

1 40V - 600V Range
2 4V - 600V Range

MODEL
NUMBERS


ModelDescription
73201/R Display 4300-count digital reading; DC Voltage Accuracy 0.75% + 1; AC Voltage Accuracy 1% + 5
73203/R Display 4300-count digital reading; DC Voltage Accuracy 0.5% + 1; AC Voltage Accuracy 0.75% + 1
73202/R Display 4300-count digital reading; DC Voltage Accuracy 0.5% + 1; AC Voltage Accuracy 1% + 5
73204/R Display 4300-count digital reading; DC Voltage Accuracy 0.3% + 1; AC Voltage Accuracy 0.75% + 1
