Features
*DDS Technique and FPGA Chip Design
*Frequency Range : 0.1Hz~4/10MHz
*High Frequency Accuracy : ± 20ppm
*Frequency Resolution : 100mHz
*Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
*Front Panel Setting Save/Recall with 10 Groups of Setting Memories
*Built-In 9 Digits,150MHz/High Resolution Counter(SFG-2110 Only)
*INT/EXT AM/FM Modulation (SFG-2110 Only)
*LIN/LOG Sweep Mode(SFG-2110 Only)
Description :

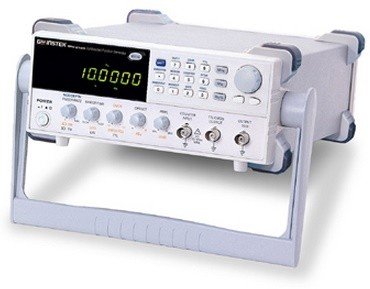

Based on the Direct Digital Synthesized (DDS) technology and unique FPGA design, the SFG-2000/2100 Series Function Generators are built with exceptionally high performance far exceeding that of any conventional function generators at a very competitive price. Stable output frequency, low distortion, and fine frequency resolution are the most remarkable characteristics of this product series. The SFG-2000/2100 Series include four members in each family at 4MHz and 10MHz bandwidth(perivd), The SFG-2100 Series have additional functions of Sweep, AM/FM modulation, and External Counter. As a result of the 20ppm stability level and output waveform accuracy, The SFG-2000/2100 Series well fit into a wide variety of applications, such as signal generator for experiment labs, reference signal for PLL (Phase Locked Loop), and calibration and adjustment source for electronic devices. |
|
Specification :
SFG-2000 Series
|
SFG-2100 Series
|
|
Main |
||
Frequency Range (Sine, Square) |
SFG-2004 : 0.1Hz ~ 4MHz SFG-2010 : 0.1Hz ~ 10MHz |
SFG-2110 : 0.1Hz ~ 10MHz |
Frequency Range (Triangle) | 0.1Hz~1MHz | |
Frequency Resolution | 0.1Hz | |
Frequency Stability | ± 20 ppm | |
Frequency Accuracy | ± 20 ppm | |
Aging | ± 5 ppm /year | |
Output Function | Sine, Square, Triangle | |
Amplitude Range | 2mV~10Vpp(50Ω Load) | |
Impedance | 50Ω±10% | |
Attenuator | -20dB±1dB×2 | |
DC Offset | <-5V~>+5V(50Ω Load) | |
Duty Cycle | 20% to 80%, 2Hz~1MHz (Only Square) | |
Range Resolution | 1% | |
Display | 9 位 LED display | |
SINE WAVE |
||
Harmonics Distortion | -55dBc,0.1Hz~200kHz; -40dBc,0.2MHz~4MHz; -30dBc,4MHz~10MHz (Specification applied to both TTL/CMOS OFF and from MAX. to 1/10 level) |
|
Flatness(Relative to 1kHz) | <± 0.3dB,0.1Hz~1MHz; <± 0.5dB,1MHz~4MHz; <± 2dB, 4MHz~10MHz | |
TRIANGLE WAVE |
||
Linearity | ≧98%,0.1Hz~100kHz;≧95%,100kHz~1MHz | |
SQUARE WAVE |
||
Symmetry | ± 1% of period +4ns to 0.1Hz~100kHz | |
Rise or Fall Time | ≦25ns at maximum output.(into 50 load) | |
CMOS Output |
||
Level | 4Vpp±1Vpp~15Vpp±1Vpp adjustable; Rise or Fall Time ≦120ns | |
TTL Output |
||
Level | ≧3Vpp ; Fan out; 20 TTL Load ;Rise and Fall Time ≦25ns | |
SWEEP OPERATION |
||
Rate |
-
|
100:1 ratio max. and adjustable (In order to get the maximum sweep span, the sweep time needs to be tuned on when adjusting the sweep span.) |
Time | 1Sec~30Sec adjustable (When the sweep time is too long, the stop frequency will reach and stay at the maximum frequency of the instrument until the end of the sweep cycle.) |
|
Mode | Lin./Log. switch selector | |
AMPLITUDE MODULATION |
||
Depth & Modulation Frequency |
-
|
0~100% ; 400Hz(INT), DC~1MHz(EXT) |
Carrier BW | 100Hz~5MHz(-3dB) | |
EXT Modulation Sensitivity | ≦ 10Vpp 100% modulation | |
FREQUENCY MODULATION |
||
Deviation & Modulation Frequency |
-
|
0~±50kHz,center at 1MHz, 400Hz fixed(INT), 1kHz fixed(EXT) |
EXT Modulation Sensitivity |
≦ 10Vpp 在 10% modulation (center at 1MHz) | |
FREQUENCY COUNTER |
||
Range |
-
|
5Hz~150MHz |
Accuracy | Time base accuracy±1位 | |
Time base | ±20ppm(23℃±5℃) after 30 minutes warm up後 | |
Resolution | 100nHz@1Hz, 0.1Hz@100MHz> | |
Input Impedance | 1MΩ/150pf | |
Sensitivity | ≦ 35mVrms (5Hz~100MHz) ≦ 45mVrms (100MHz~150MHz) |
|
STORE/RECALL FUNCTION | ||
10 groups of panel settings | ||
POWER SOURCE | ||
AC115V±10%, AC 230V+10%/-15%, 50/60Hz | ||
Accessories |
||
User Manual×1 Power Cord x 1 GTL-101 x 1(SFG-2000 Series) GTL-101× 2 (SFG-2110) |
||
DIMENSION & WEIGHT | 266(W)×107(H)×293(D) mm, Approx. 3.2kg |
Accessories :
User manual x 1, Power cord x 1,
GTL-101 Test Lead x 1 (SFG-2000 Series)
GTL-101 Test Lead x 2 (SFG-2110)
Ordering :
SFG-2004 4MHz DDS Function Generator
SFG-2010 10MHz DDS Function Generator
SFG-2110 10MHz DDS Function Generator with Counter, Sweep & AM, FM Modulation
