Insulation Resistance Testers Malaysia Distributor


  • Filter

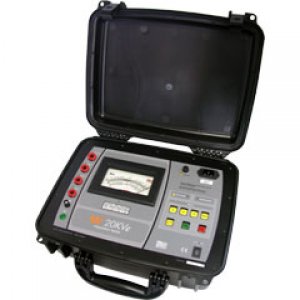

20 kV - High voltage insulation tester Insulation test up to: 4 TΩ 4 Test voltages: 5 kV - 10 kV - 15 kV - 20 kV Guard terminal Rechargeable battery Multiple scales for precision improvement Portable, accurate & rugged IP-54 Protection TheMI-20KVe High-Voltage insulation testeris a truly portable device that allows the measurement of insulation resistances using test voltages up to 20 kV.It employs a state-of-the-art technology for the safe measurements of insulation resistances up to 4,000,000 MΩ with four test voltages: 5 kV - 10 kV - 15 kV and 20 kV.Analogue indicator, having a broad scale.Readings are performed through an easy-toread analogue indicator, having a broad scale.This equipment is specially well suited to test isolation resistances in transmission lines and medium voltage distribution systems, whether aerial or underground, as it allows to perform testing with voltages near to the operational value. Besides, it is an excellent auxiliary when detecting cable failures.In order to maximize the operator's safety, this equipment was made within a plastic cabinet of high dielectric strength, with no metallic accessible parts. A light indicator warns...
