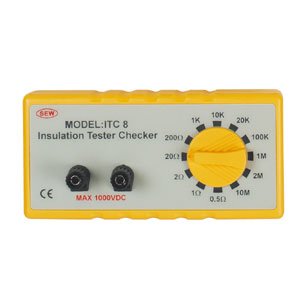

SEW0012 ITC8 Resistor Calibration Box

● The RCB-3-1T is used to verify and proof any High Voltage
    Insulation Testers. It can be utilized to calibrate all High Voltage
    Insulation Testers very accurately Analogs or Digitals.
● Some institutions and large industries requested their own calibrator
    too, therefore, SEW started manufacturing the RCB for special

FEATURES The ICT-8 can be utilized to check calibratino of resistance ranges of insulation testers and multimeters. The resistance checker box is also used to verify insulation testers and multimeters.




Resistance Ranges

0.5 Ohm, 1 Ohm, 2 Ohm, 20 Ohm, 200 Ohm, 1k Ohm, 10k Ohm, 20k Ohm, 100k Ohm, 1M Ohm, 2M Ohm, 10M Ohm


0.5 Ohm ~ 2 Ohm : +/- 0.05 Ohm


20 Ohm ~ 10M Ohm : +/- 1%


150(L) x 72(W) x 60(D)mm


Approx. 180g

Safety Standard

IEC/EN 61010-1 CAT III 1000Vdc


EN 55011, EN 61000-4-2, EN 61000-4-3



Resistance ranges (Ω) : 1M. 10M. 100M. 1G.
    5G. 10G. 100G. 1T
Resistance tolerances : ±1%(F)
Temperature coefficient : ± 25ppm/°C : 1MΩ. 10MΩ. 100MΩ.
    ± 100ppm/°C : 1GΩ. 5GΩ
    ± 200ppm/°C : 10GΩ.100GΩ
    ± 1000ppm/°C : 1TΩ
Max. working voltage : DC 10kV
Operating temperature : -30°C~75°C
Power coefficient : Below 3W
Connecting erminals : Binding Post : Resistance circuit
    and guard
Dimensions : 430(L) × 324(W) × 127(D)mm
Weight (battery included) : Approx. 4140g
