MAD0006-VACCINE TEMPERATURE MONITORING SYSTEM (VTMS) LOGGER INCL. 30ML BOTTLE (REQUIRED RFC1000 USB SOFTWAR

 Vaccine Temperature Monitoring System

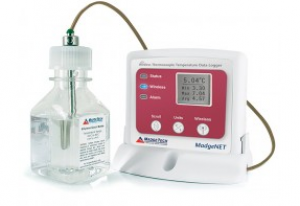

Vaccine Temperature Monitoring System (VTMS) is ideal for the continuous measurement and data logging of temperature sensitive vaccines or pharmaceuticals in refrigerators, freezers, and coolers. The system includes a NIST traceable RFTCTemp2000A data logger with thermocouple, Glycol bottle and a power supply. Additionally, the RFTCTemp2000A data logger in the VTMS system has a convenient LCD to ensure temperature parameters are met, in real time. The current reading, minimum, maximum and average statistics can all be obtained through the display.

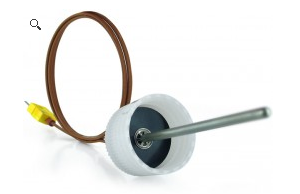

In the real-time chart recording mode the VTMS can alert the user, or other personnel, via e-mail or text message if the refrigerator has failed, or if the temperature is outside of the nominal range. This allows users to take immediate actions to ensure vaccines and pharmaceuticals in storage are not destroyed. To prevent false alarms, the RFTCTemp2000A is connected to a Glycol bottle which provides temperature buffered readings.

Countries approved for use, purchase and distribution of the VTMS:
Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Columbia, Croatia, Cyprus, Czech Republic, Denmark, Ecuado, Estonia, Finland, France, Germany, Greece, Honduras, Hungary, Iceland, Ireland, Israel, Japan, Latvia, Liechtenstein, Lithuania, Luxembourg, Malaysia, Malta, Mexico, New Zealand, Norway, Poland, Portugal, Romania, Saudi Arabia, Slovakia, Slovenia, South Africa, South Korea, Spain, Sweden, Switzerland, Thailand, The Netherlands, Turkey, United Kingdom, United States, Venezuela, Vietnam

TEMPERATURE

Internal Channel Temperature Sensor Semiconductor
Internal Channel Temperature Range -20 °C to 60 °C
Internal Channel Temperature Resolution 0.1 °C
Internal Channel Temperature Calibrated Accuracy ±1.0 °C
Remote Channel Temperature Sensor Type K Thermocouple (Included)

GENERAL

Memory 16,128 readings per channel
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 250,000
Cold Junction Compensation Automatic based on internal channel
Battery Life 3 years typical at 1 minute reading rate
Material ABS Plastic
Dimensions 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
Operating Environment -20 °C to +60 °C, 0 %RH to 95 %RH non-condensing
Required Interface Package RFC1000 (wireless); USB to Mini USB Cable
