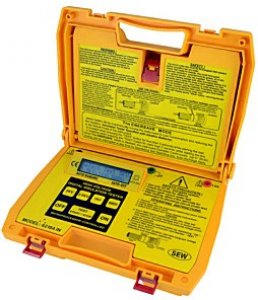

SEW0078C-KKINSTRUMENTS 62104AV3 IN 5KV DIGITAL INSULATION TESTER -1 YEAR WARRANTY ( 3125 ALTERNATIVE)

Category: Insulation (Resistance) testers
 FEATURES
● Microprocessor-controlled.
● Four insulation test voltages.
● Insulation resistance; auto ranging on all ranges.
● Bargraph indicates test voltage; rise and decay can be observed during tests.
● Visual and audible warning if external voltage is present.
● Fully protected: crow bar.
● Carry case.
● EEPROM calibration.

  SPECIFICATIONS


Test voltage (DC V) 0.5kV /   1kV   /   2.5kV   /   5kV
Measuring ranges
(Auto-Ranges)		 0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ
Accuracy ±3% rdg
Output power limit 50uA to 100uA (1W)
Live warning > 500V AC
Operation
temperature		 0°C to 40°C
Operation-humidity 85% Max. relative humidity
Dimensions 330(L) × 260(W) × 160(D)mm
Weight
(battery included)		 Approx. 3500g
Power source 1.5V “C”× 8 Alkaline batteries
Safety standard EN 61010-1
EN 61326-1
